Står og vakler mellem at købe ny rev.1 eller brugt rev.2 Hvor ligger forskellen mellem rev.1 og rev.2 ?????

skal nok lige nævne at det er rca signal kabel der er snak om

Hvis ikke Rev.2 er meget dyrere end Rev.1 ville jeg klart købe det. det er næsten dobbelt så bredt, og har mange flere
sølvledere til at transportere signalet igennem.

hvad er prisforskellen?

Rev. 1 er før set her på siden til mellem 1000-1200 kr.

har ikke set rev. 2 til salg.

http://www.nordost.com/Red-Dawn-LS-Interconnect-P79.asp

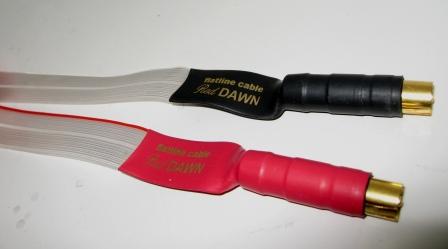

Kan kun finde dette red Dawn på deres hjemmeside, laves de flade red dawn ikke mere ???

sirhish skrev: http://www.nordost.com/Red-Dawn-LS-Interconnect-P79.asp Kan kun finde dette red Dawn på deres hjemmeside, laves de flade red dawn ikke mere ???

Har du ikke bemærket at der er en masse Blue Heaven, Red Dawn og Baldur på bud hos div. forhandlere pt. , det er der jo en grund til  Mener at nogle af deres kabler kommer i en rev. 3 men er ikke helt klar over om det også gælder Red Dawn.

__________________
Husk det er kun en hobby

"Blue Heaven", "Red Dawn" er udgået og blive afløst af nye kabler

"Blue Heaven rev. 2" blive afløst af "Blue Heaven LS" og "Red Dawn rev. 2" blive afløst af "Red Dawn LS", og komme til at
ligge i Nordost´s "Leif Series" samme med de nye "Purple Flare LS Interconnect", "Purple Flare LS Loudspeaker Cable" og
"White Lightning LS Anniversary Interconnect", "White Lightning Anniversary Loudspeaker Cable".

http://www.sas-audio.dk/00002/00307/00323/

Nordost´s "Leif Series":

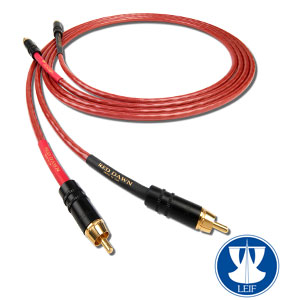

Red Dawn LS Interconnect


The Red Dawn interconnect represents both the performance pinnacle of the Leif Series and everything that we can build into
a non-Micro Mono-Filament/TSC cable design. But despite its (relatively) conventional appearance there’s more to this cable
than meets the eye.

A fully-shielded design that can be terminated for balanced or single-ended connection, it employs six, heavy-gauge 24 AWG,
silver-plated 99.9999% OFC solid-core conductors, precision wound in a minimum cross-section configuration that eliminates
unnecessary fillers or padding elements. Insulation is high-grade FEP, selected for its superior dielectric performance, while
the elegant minimalism extends to the carefully selected low-mass connectors and differential grounding. The Red Dawn LS
interconnect (like all Nordost cables) is manufactured and hand-terminated in the USA, enabling us to further guarantee
consistent performance. The result is a high-speed, low-loss interconnect that fully preserves the sense of musical power and
momentum, scale and drama, delivering your recordings with delicacy on demand, a compelling impact when required. You
will be shocked by the life and vitality that Red Dawn LS brings to your system and your music.

SPECIFICATIONS
TERMINATION: RCA or XLR
INSULATION: Fluorinated Ethylene Propylene (FEP)
CONSTRUCTION: 6 x 24 AWG
CONDUCTORS: Silver-plated 99.9999 OFC solid-core
CAPACITANCE: 60.0pF/ft
INDUCTANCE: 0.035uH/ft
OVERALL SHIELD COVERAGE: 95% Braid

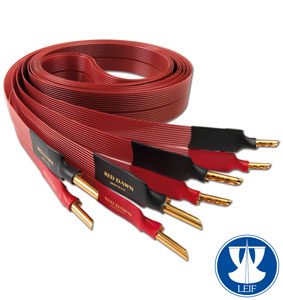

Red dawn LS Loudspeaker Cable

Nordost's original Flatline loudspeaker cable introduced the audio world to both an entirely new level of performance and a
unique production technique. Our proprietary, extruded FEP cables, with their thin, flat profile don't just look different - their
deceptive simplicity is a uniquely elegant answer to the conflicting requirements for low resistance, capacitance and
inductance that limit the performance of more conventional cable configurations. Now, the Red Dawn LS takes the benefits
even further. By reducing dielectric effects still further as well as optimizing the physical spacing of the 20 heavy-gauge 12
AWG silver-plated OFC solid-core conductors we have produced a cable capable of phenomenal phase accuracy and detail,
speed and dynamic range. From the quietest, most delicate note to the power of a thundering orchestral crescendo or driving
rock track, the Red Dawn LS spans the range with effortless grace and deft control, allowing music to seduce when it wants
to, or be savage when it must. Sitting at the top of the Leif Series, Red Dawn LS bears comparison with competing cables
irrespective of price. As the best, non Micro Mono-Filament speaker cable that we can make, it’s pretty much the best non
Micro Mono-Filament speaker cable out there!

SPECIFICATIONS
TERMINATION: Single-wired spades or bananas
INSULATION: Fluorinated Ethylene Propylene (FEP)
CONSTRUCTION: 20 conductors 12 AWG
CONDUCTORS: Silver-plated 99.9999 OFC solid-core
CAPACITANCE: 10.0pF/ft
INDUCTANCE: 0.155uH/ft

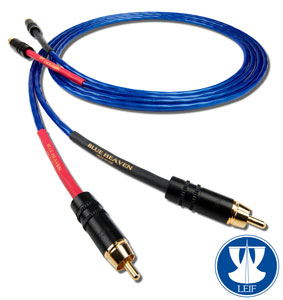

Blue Heaven LS Interconnect

Blue Heaven is the heart and soul of the Leif Series, extending the cable range with dedicated designs to optimize the
performance of your AC supply as well as demanding digital and analog sources. But the centrepiece of the Blue Heaven
family is the LS interconnect.

A fully-shielded design that can be terminated for balanced or single-ended connection, it employs four, heavy-gauge 24
AWG, silver-plated 99.9999% OFC solid-core conductors, precision wound in a minimum cross-section configuration that
eliminates unnecessary fillers or padding elements. Insulation is high-grade FEP, selected for its superior dielectric
performance, while the elegant minimalism extends to the carefully selected low-mass connectors and differential grounding.
The Blue Heaven LS interconnect (like all Nordost cables) is manufactured and hand-terminated in the USA, enabling us to
further guarantee consistent performance. The result is a high-speed, low-loss interconnect that preserves the sense of
musical power and momentum, bringing believable shape and presence to performers, colour, life and drama to their
performances.

SPECIFICATIONS
TERMINATION: RCA or XLR
INSULATION: Fluorinated Ethylene Propylene (FEP)
CONSTRUCTION: 4 x 24 AWG
CONDUCTORS: Silver-plated 99.9999 OFC solid-core
CAPACITANCE: 45.0pF/ft
INDUCTANCE: 0.046uH/ft
OVERALL SHIELD COVERAGE: 95% Braid

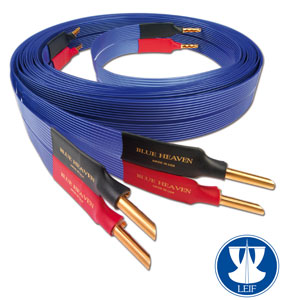

Blue Heaven LS Loudspeaker Cable

Nordost’s original Flatline loudspeaker cable introduced the audio world to both an entirely new level of performance and a
unique production technique. Our proprietary, extruded FEP cables, with their thin, flat profile don’t just look different – their
deceptive simplicity is a uniquely elegant answer to the conflicting requirements for low resistance, capacitance and
inductance that limit the performance of more conventional cable configurations. Now, by re-examining the geometry of each
cable, we have reduced dielectric effects still further as well as optimizing the physical spacing of the conductors. These
advantageous electrical characteristics, combined with the intrinsic geometrical accuracy of the ribbon configuration deliver
unprecedented dynamic response, phase accuracy and detail, providing a place for everything and make sure that
everything arrives in that proper place. The result is a combination of natural, unfettered dynamics and clarity that make
your music and movies more accessible, more involving and more lifelike. The original Blue Heaven was a hard act to follow,
but the LS version easily exceeds the performance of its renowned predecessor, bringing even budget electronics and
speakers to life.

SPECIFICATIONS
TERMINATION: Single-wired spades or bananas
INSULATION: Fluorinated Ethylene Propylene (FEP)
CONSTRUCTION: 14 conductors 14 AWG
CONDUCTORS: Silver-plated 99.9999 OFC solid-core
CAPACITANCE: 9.6pF/ft
INDUCTANCE: 0.16uH/ft

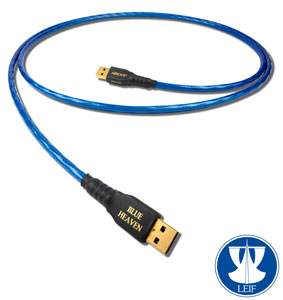

Blue Heaven USB 2.0

Along with fi le formats and transmission standards, the cables used in computer audio applications can have a dramatic
effect on sound quality. These are digital leads, and just like the digital leads in any other high-end audio application, they
have standards to adhere to. It’s just that the standard for USB (Universal Serial Bus) 2.0 cables
is rather more complex than the 75 and 110 Ohm digital leads we
are more used to. Their hybrid construction combines data and
power conductors with multiple screens in a precision symmetrical
array. Any geometrical or impedance deviation will materially effect data-integrity, making it a challenge that tests the ability
of cable manufacturers to produce and consistently terminate cables that meet the standard suffi ciently accurately for high-fi
delity audio production.

The new Blue Heaven USB 2.0 data cable is precision wound from
dimensionally optimized, silver-plated OFC solid-core conductors that employ Nordost’s proven micro mono-fi lament
technology to ensure ultra high transmission speeds with superb geometrical accuracy. Metal-jacketed plugs ensure shielding
continuity and to further guarantee quality control and consistency, the cables are entirely manufactured and terminated in
the USA, allowing us to control every aspect of production. This cable sets new standards of audio performance – not by
inventing some new, “magic” technique, but by applying the same tried and tested technology and absolute attention to detail
that has made Nordost audio cables market leaders across the analog and digital domains.

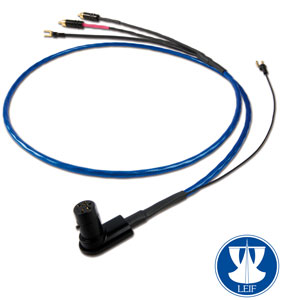

Blue Heaven LS Tonearm Cable

The tiny signals generated by pick-up cartridges, especially modern moving-coils, can be between 500 and 5000 times
smaller than the average output of a CD player. Such fragile signals demand purpose built, low-capacitance cables if the
finest details and textures are to escape smearing and loss. Low capacitance is a central aim of Nordost’s high-speed
minimalist construction, but a tonearm lead demands more, with comprehensive shielding and grounding essential to
optimum performance.

The Blue Heaven tonearm cable delivers exactly the low-loss electrical characteristics required, combined with effective
shielding, dual grounding and a full range of termination options in both single-ended and balanced configurations, allowing
you to specify exactly the topology required to liberate the musical performance locked in the grooves on your LP collection.
It’s position, right at the start of the signal chain, and the fragile nature of the signals it carries make it doubly critical, but
deliver a double performance benefit when you get it right. With the Blue Heaven tonearm cable, now there’s an affordable
way to hear what’s really on your records.

SPECIFICATIONS
TERMINATION: RCA, XLR, 5-pin Din (0 or 90 degree) to RCA or XLR
INSULATION: Fluorinated Ethylene Propylene (FEP)
CONSTRUCTION: 4x 24AWG with 26AWG drain wire
CONDUCTORS: Silver-plated 99.9999 OFC solid-core
CAPACITANCE: 45.0pF/ft
INDUCTANCE: 0.046uH/ft
OVERALL SHIELD COVERAGE: 98% Braid

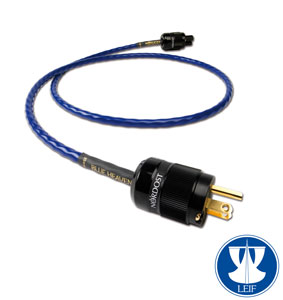

Blue Heaven LS ower Cord

When you listen to your system, you are actually listening, quite literally, to the AC mains supply, which makes the most
important cables in your system the ones feeding power into the equipment. They are responsible for the raw material that
gets turned into the sound you hear and as befits this critical function, Nordost employs FEP insulation and its high-speed,
low-loss Micro Mono-Filament construction to deliver the best possible power source for your system.

The Blue Heaven power cord seems like a conventional, three-core AC cord, but don’t be fooled. The use of Nordost’s
proven, proprietary high-speed, low-loss Micro Mono-Filament construction and FEP insulation throughout transforms its
performance – and the performance of your system. And whilst equipment like amplifiers, with a high-current draw,
obviously place extreme demands on the AC supply, don’t neglect your source components. When it comes to your
equipment’s power-supply, you need quality as well as quantity, and the Blue heaven power cord delivers both, making it the
crucial foundation stone on which to build your system’s performance. UL approved, it is available in a full range of AC plug
options.

SPECIFICATIONS
TERMINATION: US, Eu, UK, AUS to 15 or 20 Amp IEC
INSULATION: Fluorinated Ethylene Propylene (FEP)
CONSTRUCTION: 3x 16AWG Micro Mono-Filament
CONDUCTORS: 65 strand 99.9999 OFC solid-core
CAPACITANCE: 10.0pF/ft
INDUCTANCE: 0.155uH/ft
POWER RATING: 10 Amps

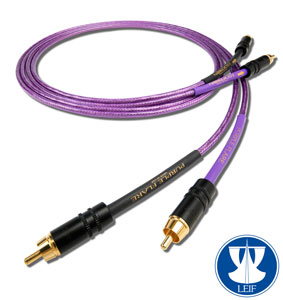

Purple Flare LS Interconnect

The Purple Flare Interconnect is a fully-shielded design that can be terminated for balanced or single-ended connection, it
employs six 26 AWG, silver-plated 99.9999% OFC solid-core conductors, precision wound in a minimum cross-section
configuration that eliminates unnecessary fillers or padding elements. Insulation is high-grade FEP, selected for its superior
dielectric performance, while the elegant minimalism extends to the carefully selected low-mass connectors and differential
grounding. The Purple Flare interconnect (like all Nordost cables) is manufactured and hand-terminated in the USA, enabling
us to further guarantee consistent performance. The result is a high-speed, low-loss interconnect that preserves the sense of
musical power and momentum, with seamless, wide bandwidth and superb low-frequency speed and weight.

SPECIFICATIONS
TERMINATION: RCA or XLR
INSULATION: Fluorinated Ethylene Propylene (FEP)
CONSTRUCTION: 6 x 26 AWG
CONDUCTORS: Silver-plated 99.9999 OFC solid-core
CAPACITANCE: 55.0pF/ft
INDUCTANCE: 0.037uH/ft
OVERALL SHIELD COVERAGE:

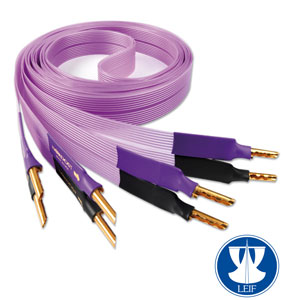

Purple Flare LS Loudspeaker Cable

Nordost's original Flatline loudspeaker cable introduced the audio world to both an entirely new level of performance and a
unique production technique. Our proprietary, extruded FEP cables, with their thin, flat profile don't just look different - their
deceptive simplicity is a uniquely elegant answer to the conflicting requirements for low resistance, capacitance and
inductance that limit the performance of more conventional cable configurations. Now, by re-examining the geometry of each
cable, we have reduced dielectric effects still further as well as optimizing the physical spacing of the conductors. This results
in significant musical gains, increasing musical flow, dynamics and expressive range. Compared to the White Lightning
Anniversary, the Purple Flare's increased number and gauge of conductors allow it to deliver greater weight and dynamic
range, for even greater musical involvement, drama and impact.

SPECIFICATIONS
TERMINATION: Single-wired spades or bananas
INSULATION: Fluorinated Ethylene Propylene (FEP)
CONSTRUCTION: 14 conductors 15 AWG
CONDUCTORS: Silver-plated 99.9999 OFC solid-core
CAPACITANCE: 9.25pF/ft
INDUCTANCE: 0.17uH/ft

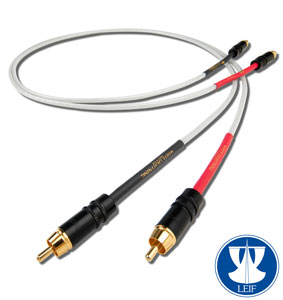

White Lightning LS Anniversary Interconnect

A fully-shielded design that can be terminated for balanced or single-ended connection, it employs four 26 AWG, silver-plated
99.9999% OFC solid-core conductors, precision wound in a minimum cross-section configuration that eliminates unnecessary
fillers or padding elements. Insulation is high-grade FEP, selected for its superior dielectric performance, while the elegant
minimalism extends to the carefully selected low-mass connectors and differential grounding. The White Lightning
interconnect (like all Nordost cables) is manufactured and hand-terminated in the USA, enabling us to further guarantee
consistent performance. The result is a high-speed, low-loss interconnect that preserves the sense of musical power and
momentum, creating a new performance benchmark at this price level.

SPECIFICATIONS
TERMINATION: RCA or XLR
INSULATION: Fluorinated Ethylene Propylene (FEP)
CONSTRUCTION: 4 x 26 AWG
CONDUCTORS: Silver-plated 99.9999 OFC solid-core
CAPACITANCE: 43.0pF/ft
INDUCTANCE: 0.046uH/ft
OVERALL SHIELD COVERAGE: 95% Braid

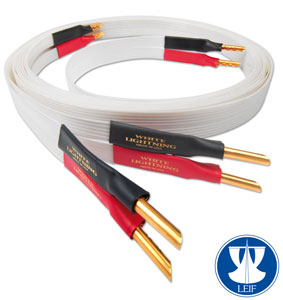

White Lightning Anniversary Loudspeaker Cable

Nordost's original Flatline loudspeaker cable introduced the audio world to both an entirely new level of performance and a
unique production technique. Our proprietary, extruded FEP cables, with their thin, flat profile don't just look different - their
deceptive simplicity is a uniquely elegant answer to the conflicting requirements for low resistance, capacitance and
inductance that limit the performance of more conventional cable configurations. Now, by re-examining the geometry of each
cable, we have reduced dielectric effects still further as well as optimizing the physical spacing of the conductors. This results
in significant musical gains, allowing the White Lightning Anniversary to step straight into the shoes of its illustrious
predecessor by once again, establishing a completely new performance benchmark at this price point, delivering greater
power and musical purpose from your system than you will have thought possible.

SPECIFICATIONS
TERMINATION: Single-wired spades or bananas
INSULATION: Fluorinated Ethylene Propylene (FEP)
CONSTRUCTION: 10 conductors 16 AWG
CONDUCTORS: Silver-plated 99.9999 OFC solid-core
CAPACITANCE: 8.7pF/ft
INDUCTANCE: 0.18uH/ft

Så fik jeg købt mig et red dawn rca kabel... Så var det jeg tænkte på om det ikke skulle fremgå af emballagen og/eller kablet det er rev. 2 udgaven??????

sirhish skrev: Så fik jeg købt mig et red dawn rca kabel... Så var det jeg tænkte på om det ikke skulle fremgå af emballagen og/eller kablet det er rev. 2 udgaven??????

Upload et billede af kablet, så skulle det gerne være let at afgøre.


__________________
Mvh Thue

Så fik jeg taget et billed...

De Rev 2 jeg har set ser ud som dit.
Rev 1, som jeg husker det, har ikke forskelligfarvede stik, men henholdsvis en sort og rød stribe på stikket.

Hvordan er dine lytteindtryk?


__________________
Mvh Thue

Lidt flere detaljer syntes jeg at kunne fornemme...

sirhish skrev: Lidt flere detaljer syntes jeg at kunne fornemme...

Hvilket kabel har det erstattet?


__________________
Mvh Thue

thuekay skrev: sirhish skrev: Lidt flere detaljer syntes jeg at kunne fornemme... Hvilket kabel har det erstattet?



Van den hul the orchid xlr, men har ikke lavet en direkte a/b test...



det ligner mine rev 2... lækkert kabel
